U Tube Heat Exchanger Coimbatore


Gireesh Shell & Tube Heat Exchanger Manufacturer in Coimbatore are the most common type of heat exchangers used in all chemical process industries. As its name indicates, these type of heat exchangers consists of a shell filled with a bundle of tubes and sealed at each end by a tube sheet isolating the tubes and the shell.

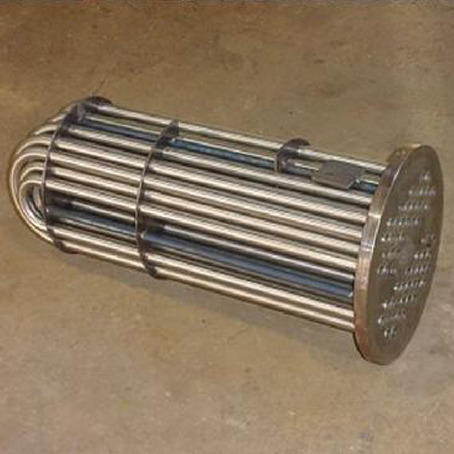

    A U-tube heat exchanger is a type of shell and tube heat exchanger that has a U-shaped tube bundle configuration. The tubes in a U-tube heat exchanger are bent into a U-shape, with the two ends of the tubes connected to a common tube sheet. This design allows for the two fluids to flow in a counter-flow arrangement, which maximizes the temperature differential between the fluids and enhances heat transfer efficiency.

    Tube-side and Shell-side Fluid Inlets and Outlets: These are the connections through which the fluids enter and exit the heat exchanger. They are typically located at the ends of the U-shaped tubes and the shell, and are connected to the process piping.

    U-tube heat exchangers are commonly used in applications where thermal performance is critical and a counter-flow arrangement is desired for maximizing heat transfer efficiency. They are used in various industries, such as HVAC, refrigeration, process heating and cooling, power plants, and petrochemicals, among others. The U-tube design allows for flexibility in handling thermal expansion and contraction of the tubes, and it is often preferred in applications where there may be temperature fluctuations or where space is limited. However, the U-tube design can also be more complex and costly to manufacture compared to other types of shell and tube heat exchangers.
